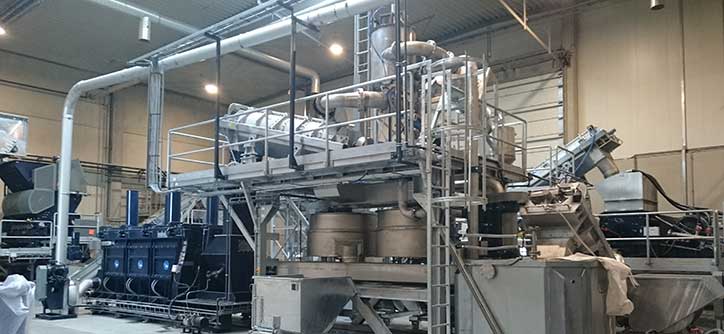

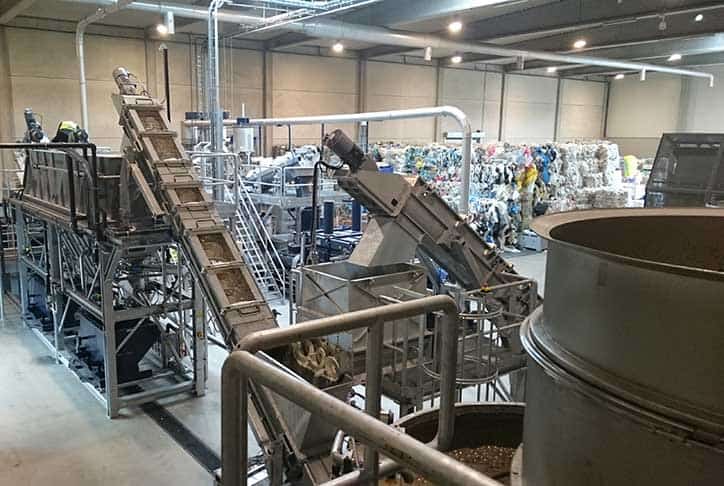

HERBOLD washing plant for PO films and rigid plastics.
The plant is suitable for the following applications:
1. Shredded PO post-consumer films, for an input up to 1,500 kg/h depending on the film thickness, achievable residual moisture 6 – 8 %.
2. Shredded PO rigid plastics for an input up to 3,000 kg/h. Residual moisture 1 – 2 %.

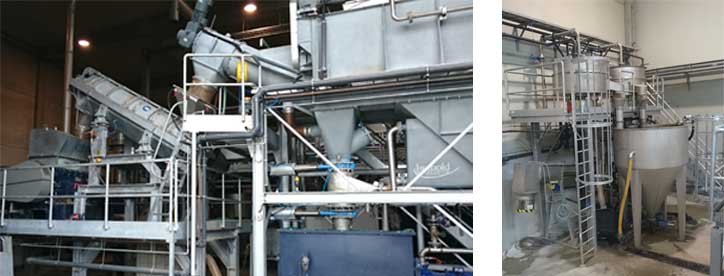

The plant consists of washing screw for the feeding of an intermediate bunker, intermediate bunker, pre-washing unit VWE 600/2, friction washer, wet granulator 60/145, friction washer, hydrocyclone separation stage, friction washer, mechanical dryer, thermal dryer, buffer silo 8m³, SPS S/-1500 control unit.
Basic water treatment consisting of 2 screening machines < 500 µ, submerged pump, screen water tank, recirculation pump.
The commissioning has taken place in 2016.
